NewGLOTRENDS
GLOTRENDS ST5116 Dual M.2 PCIe Adapter with 2 x 10Gb RJ45 Port, PCIe 4.0 X8 Interface, Support PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

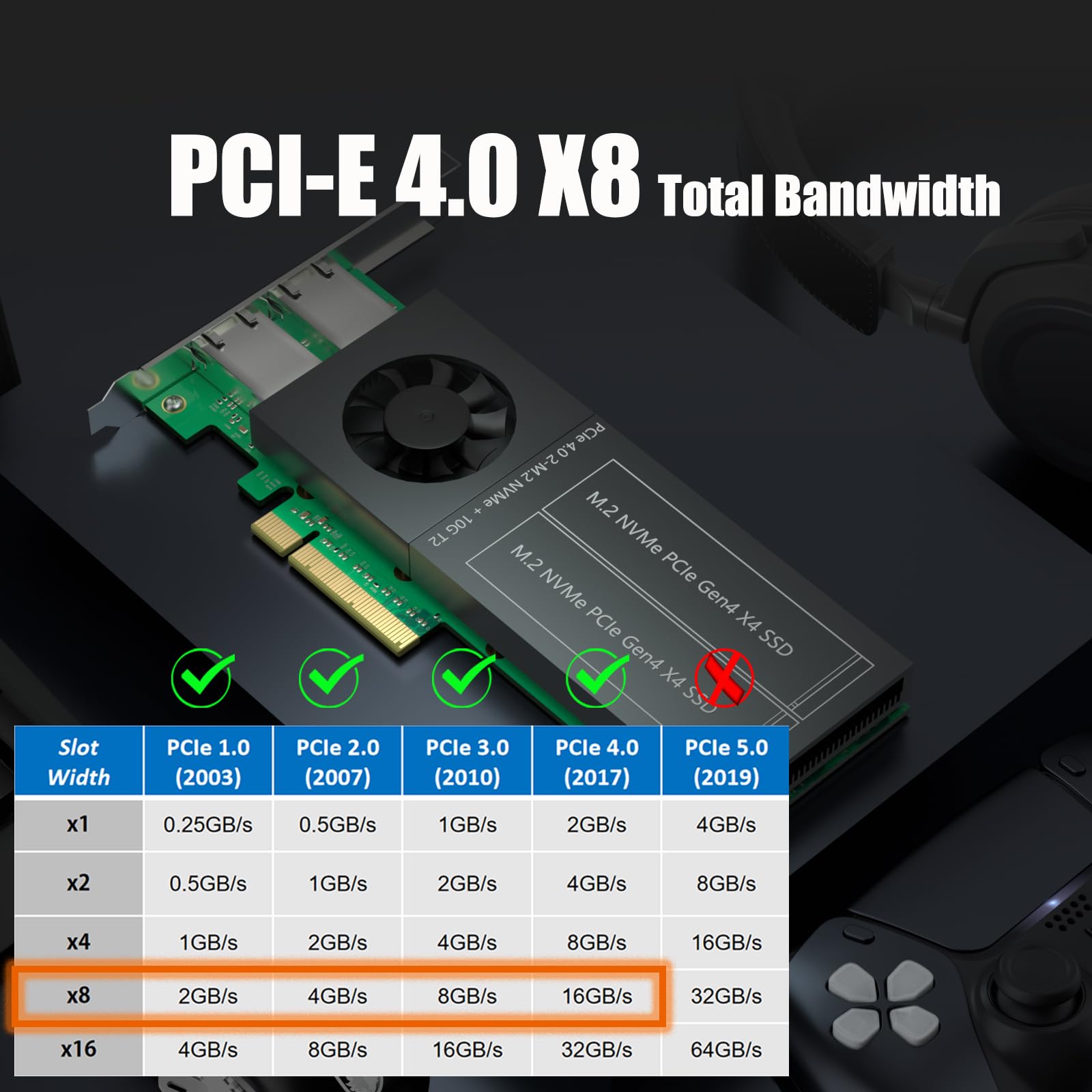

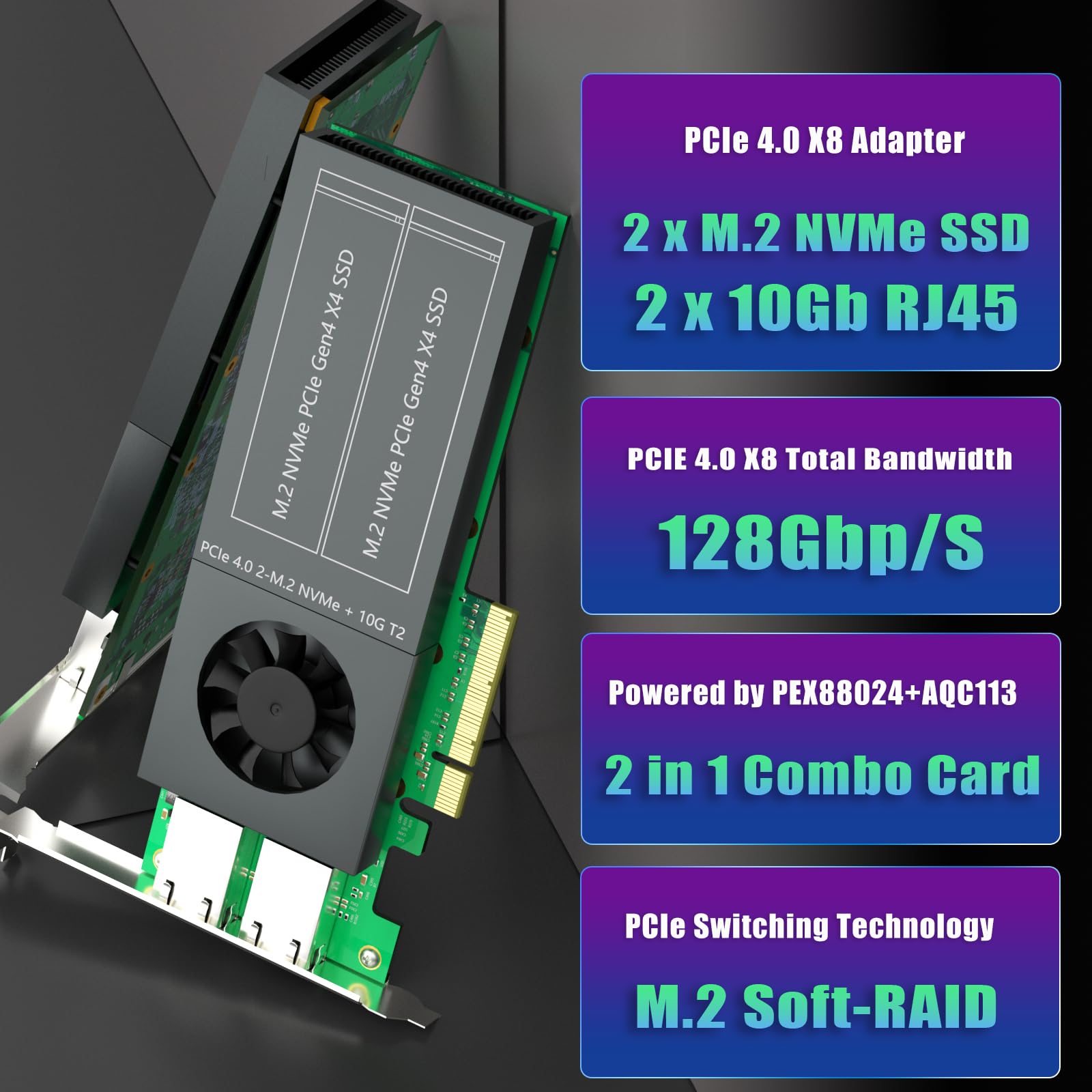

•2 in 1 PCIE Combo Card – expands 2 x M.2 NVMe Key M ports and 2 x 10Gb Ethernet RJ45 ports via a PCIe 4.0 x8 interface. Compatible with PCIe x8/x16 slots (includes standard & low-profile brackets).

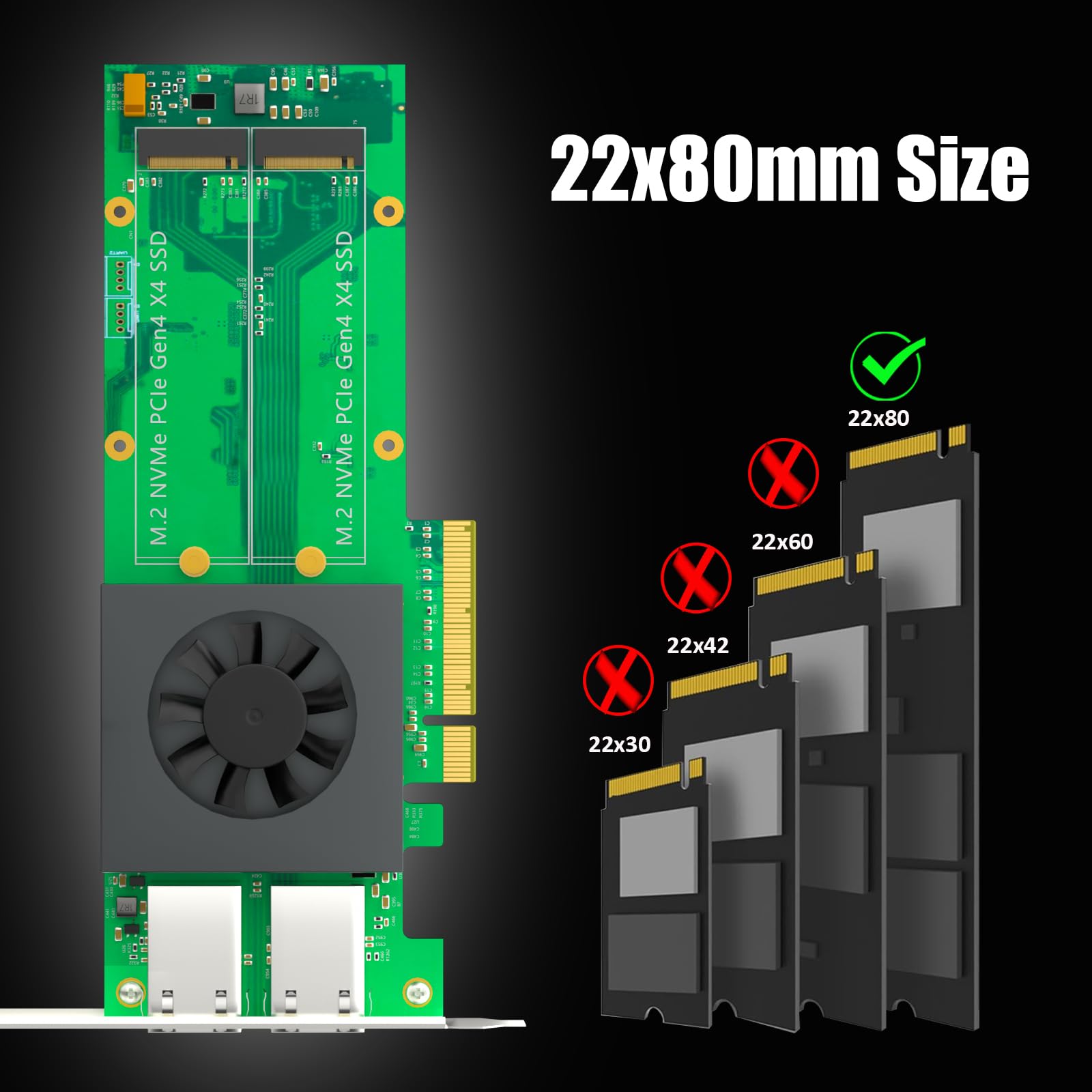

•Powered by the PEX88024 controller with PCIe bifurcation technology – works with all motherboards, including macOS, no need for motherboard/CPU PCIe bifurcation support. Note: Exclusively supports 2280-form factor M.2 NVMe SSDs.
•Supports software RAID configuration (no hardware RAID). Easily set up via Windows/Linux/macOS. Note: Intel’s RAID-on-CPU (VROC) requires a separate license purchase.
•Enables OS booting from M.2 NVMe SSDs – requires OS reinstallation and BIOS/UEFI configuration. Note: Legacy motherboards may only support storage use (non-boot functionality). Note: New M.2 NVMe SSDs must be initialized and formatted before system recognition.

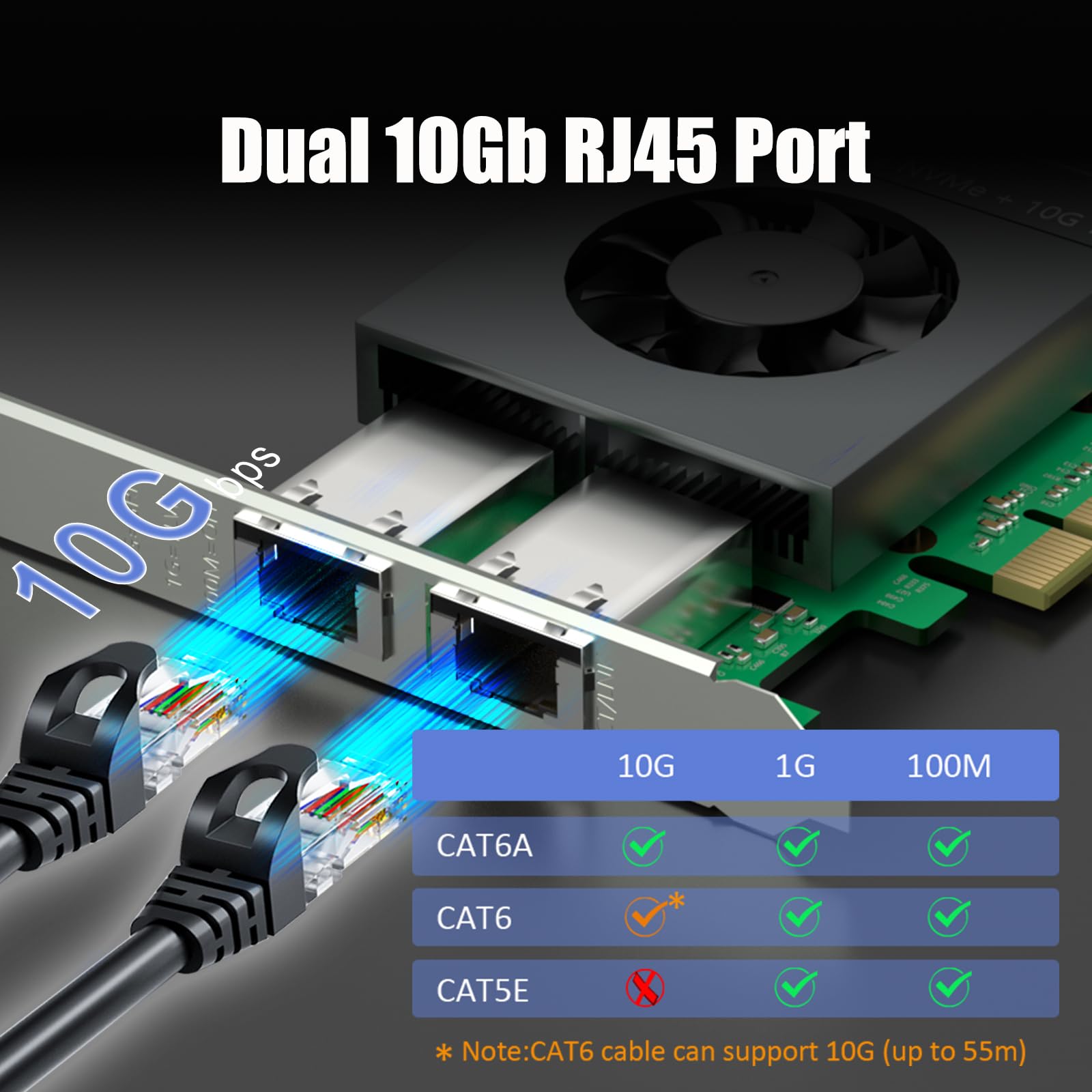

•With Marvell AQC113, it provides 2 x Ethernet 10Gb RJ45 Port, 6-speed data rate (10Gb/5Gb/2.5Gb/1Gb/100Mb/10Mb).Cable requirement: 10GbE 100m through Cat 6a, 5GbE/2.5GbE 100m through Cat 5e.
•Oversized aluminum cooling cover covers the PEX88024 control chip and 2xM.2 NVMe SSDs to ensure that high-speed SSDs can run in good condition again. Built-in fan enhances air convection for better heat dissipation.
