waveshare IMX462 2MP IR-Cut Camera, Compatible with Raspberry Pi 5/4B/3B+/3A+/3B/2B/B+/A+, 1920 × 1080, 90° DFOV, Starlight Camera Sensor, Fixed-Focus
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•IR-CUT Function Control: Equipped with an onboard switch and GPIO pad, allowing switching or GPIO software control for the IR-CUT function.
•Daytime Color Accuracy: Corrects the color deviation of the infrared camera during the day, providing a better imaging effect.
•Night Vision Support: Compatible with IR fill light for enhanced night vision imaging (IR fill light sold separately, recommended 850nm).
•Raspberry Pi Compatibility: Directly connects to various Raspberry Pi models, including 5, 4B, 3B+, 3A+, 3B, 2B, B+, A+, and also supports Zero/Zero 2 W series.

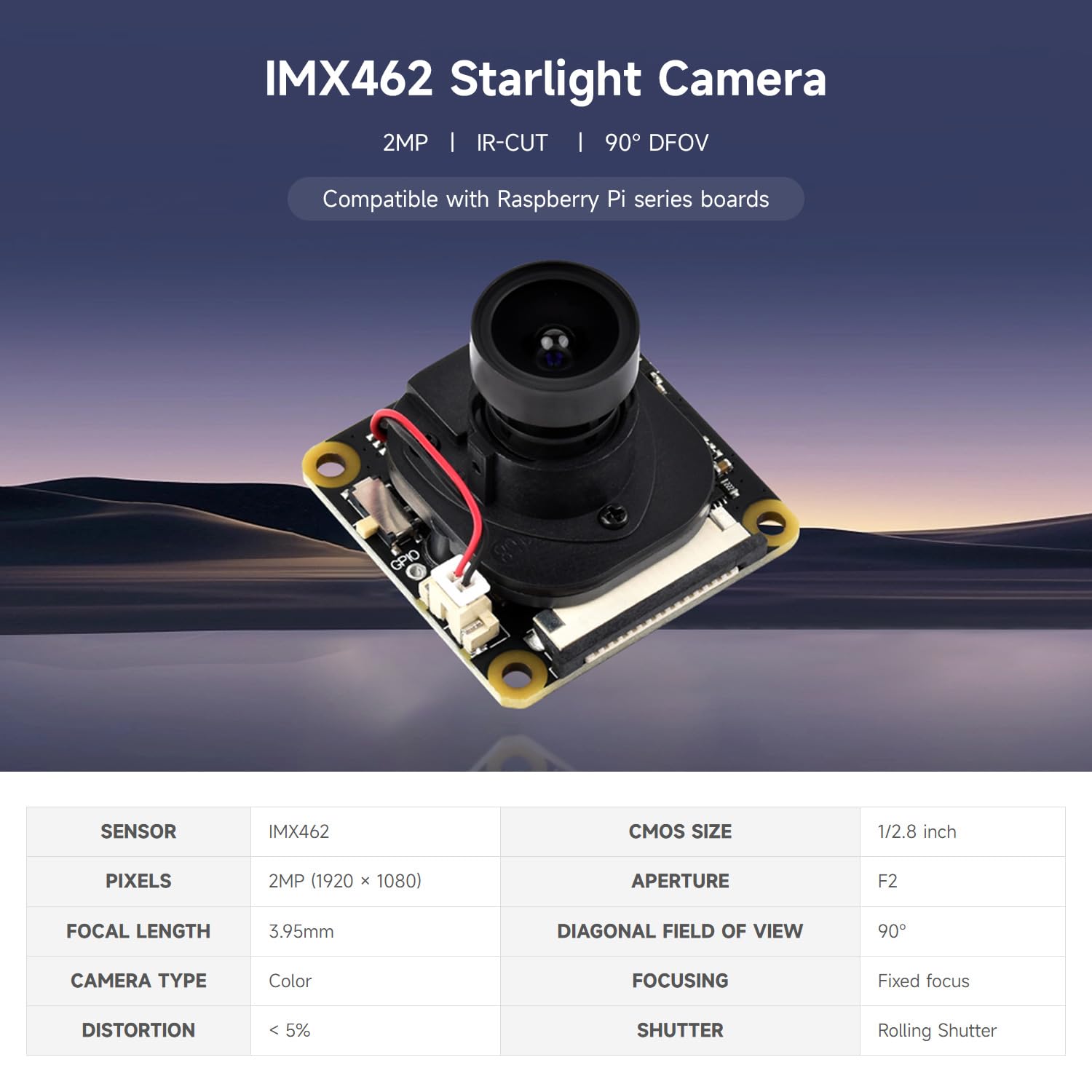

•Camera Specifications: The camera features a 2MP IMX462 sensor with a 1/2.8-inch CMOS size, 1920 × 1080 resolution, F2 aperture, 3.95mm focal length, and 90° diagonal field of view. It has a fixed focus, distortion of less than 5%, and uses a rolling shutter.
•Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
